Aluminum formwork system is highly suited to load bearing wall construction whereas traditional formwork consisting of plywood and Timber is not suitable to the high pressure of fresh concrete on the wall. Use of this formwork in load bearing design gives and average of 15% cost saving in the structure of the building and increased usable floor space of 8% over RCC design of the assembly. Only unskilled labours are required with minimal supervision. The aluminium formwork system is removable and can be reused hundreds of times with little maintenance. Moreover, the requirement of steel is also reduced in this technology as aluminium has a higher scrap value.

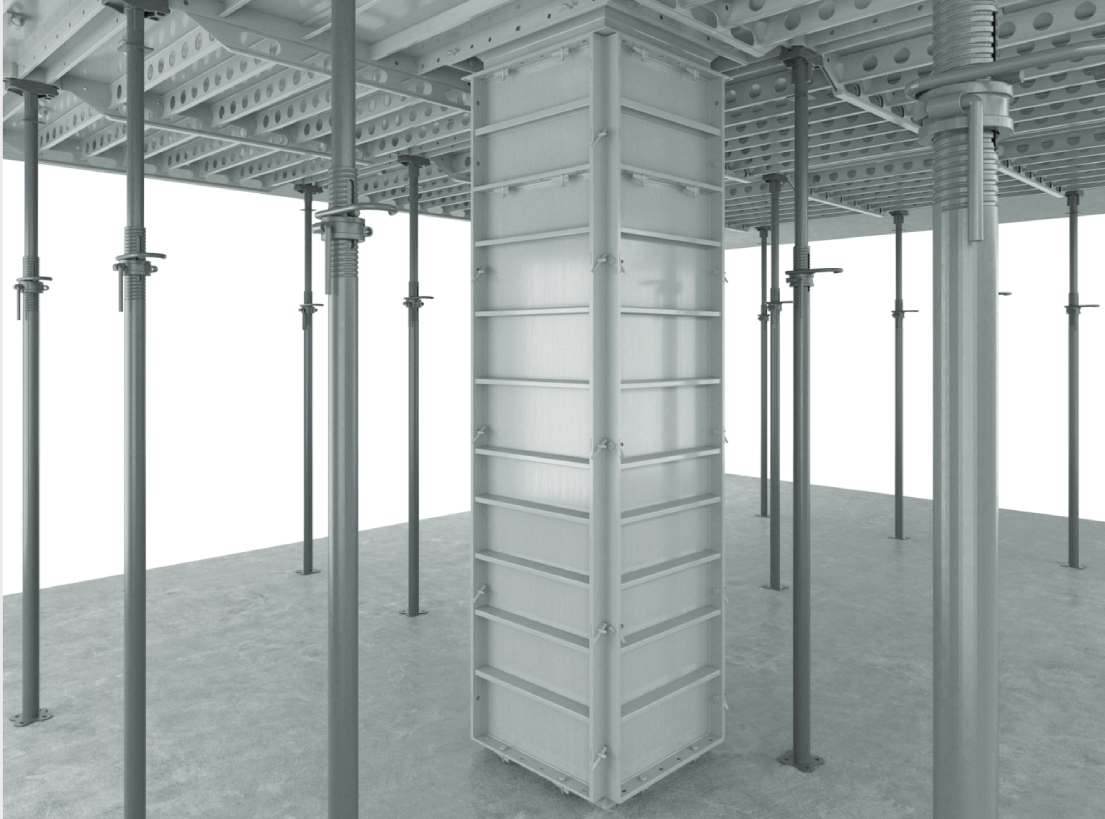

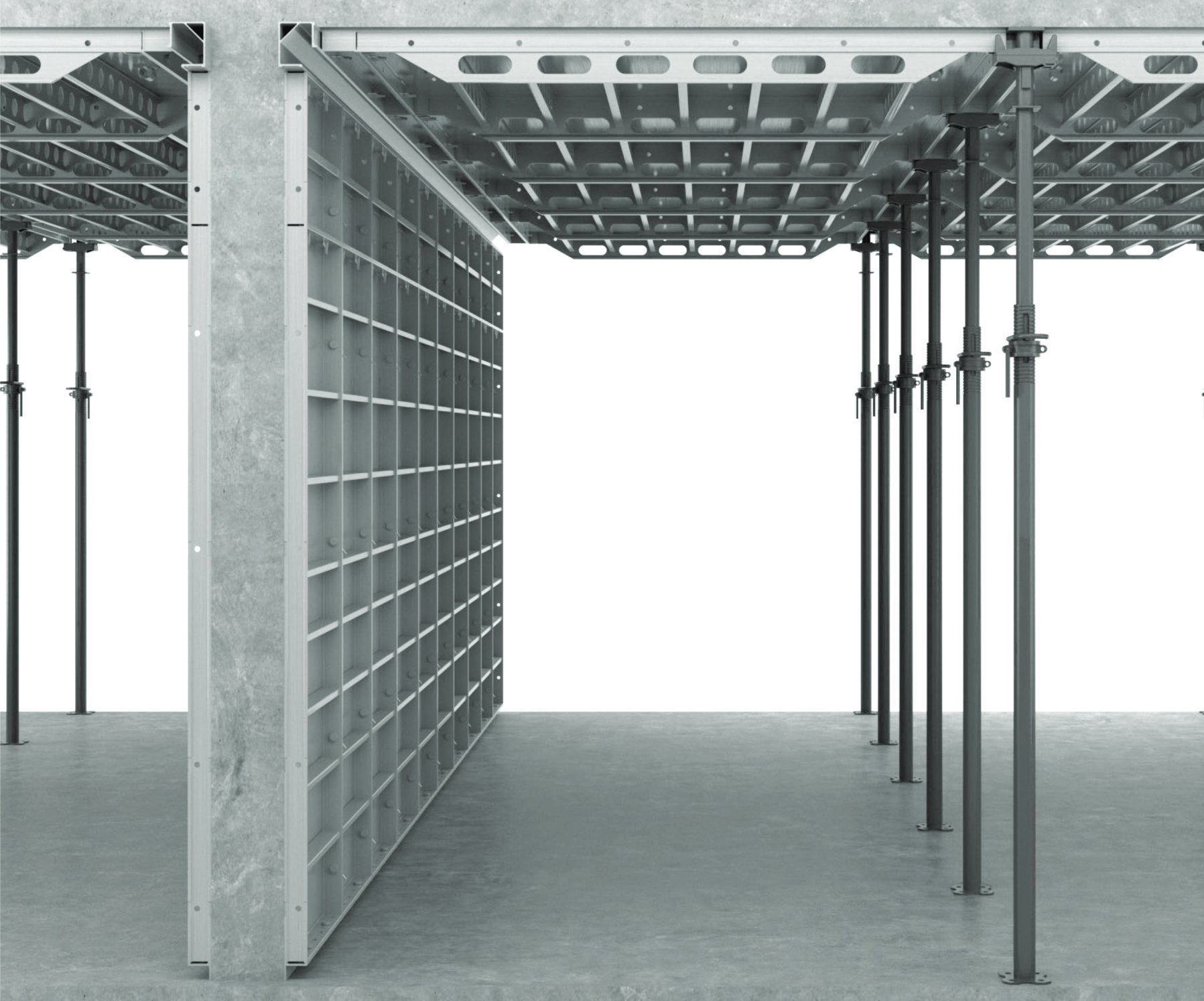

This system is based on a handled light aluminium formwork system. It is capable of forming the concrete for both, load bearing wall design and column beam design. Unlike other systems it is equally suited to both high rise and low rise buildings. In case of load bearing wall design, the systems forms all of the concrete in a building, including walls, floor slabs, columns, beams, stairs, window hoods and balconies. Specifically designed to allow the rapid construction of multiple unit projects at optimum productivity, the aluminium formwork can be used for a broad range of applications from straight forward panel to more complicated structures involving bay windows, stairs and A/C hoods. The degree of Pre engineering and inherent simplicity of the aluminium formwork enables unskilled about to be used. Every component is light enough to be handled by one operative, minimising the need for a heavy lifting equipment.
Size: 2050x 600 approx.
Weight (kg):23.67
Size 1200 x600 approx.
Weight (kg)12.82 the slap Panel will be used to support The concrete weight during Concrete pouring and Casting
Dependent upon each Structure. Used to joint the Beams together (middle beam And/ or end beam) the pipe Support will be placed Under the prop head
Best Channel Partner, service provider for PAN India - CSIPL
Certificate of excellence award for most reputed service provider with PAN India presence from Indian Navy & MDL
Quality Management System -Certificate from DBS CRET
Appreciation Award form GST ( Govt of India –Ministry of Finance)
Best Service Provider Company of the year TATA Projects Ltd
The simplicity of aluminium formwork and the repetitive nature of the assembly process make it possible to accurately programmer construction sequences and thus cycle times well in advance. In addition, this enables the unskilled labour to work with the formwork, therefore reducing the burden on skills labour when this is in short supply. On leaving the factory, all panels are clearly labelled to ensure that they are easily identifiable on site and can be smoothly fitted together using the formwork modulation drawings.
EXPLORE MORE
Dependent upon each Structure. Connection between Wall panel and slab panel.

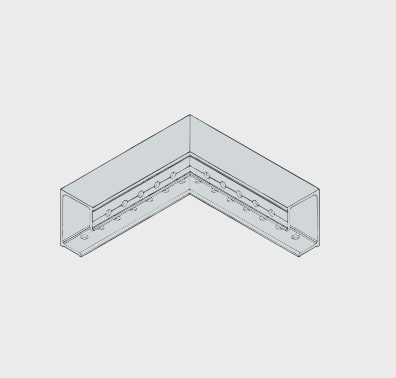

Dependent upon each structure Connection between wall panel And slab panel (Inside)
Dependent upon each Structure. Connection between Wall panel and slap Panel (outside)
Dependent upon each Structure. Connection between Wall panel and slab panel.

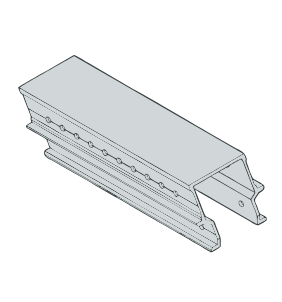

Dependent upon each Structure. Used to joint the Prop heads, the middle Beam supports The slab panels
Dependent upon each Structure. Used to joint the Prop head and slab corner The end beam supports The slab panels
